Normal Pipe Size Y		Lengthr H	Schedule T	Approx. Weight
mm	in	mm		Kg
20x15	3/4"x1/2"	38.1	STD	0.07
			X.S	0.1
25x15	1"x1/2"	50.8	STD	0.14
			X.S	0.18
25x20	1"x3/4"	50.8	STD	0.14
			X.S	0.18
32x15	11/4"x1/2"	50.8	STD	0.18
			X.S	0.23
32x20	11/4"x3/4"	50.8	STD	0.18
			X.S	0.23
32x25	11/4"x1"	50.8	STD	0.18
			X.S	0.23
40x15	11/2"x1/2"	63.5	STD	0.27
			X.S	0.32
40x20	11/2"x3/4"	63.5	STD	0.27
			X.S	0.32
40x25	11/2"x1"	63.5	STD	0.27
			X.S	0.32
40x32	11/2"x11/4"	63.5	STD	0.27
			X.S	0.32
50x15	2"x1/2"	76.2	STD	0.41
			X.S	0.54
50x20	2"x3/4"	76.2	STD	0.41
			X.S	0.54
50x25	2"x1"	76.2	STD	0.41
			X.S	0.54
50x32	2"x11/4"	76.2	STD	0.41
			X.S	0.54
50x40	2"x11/2"	76.2	STD	0.41
			X.S	0.54
65x25	21/2"x1"	88.9	STD	0.68
			X.S	0.91
65x32	21/2"x11/4"	88.9	STD	0.68
			X.S	0.91
65x40	21/2"x11/2"	88.9	STD	0.68
			X.S	0.91
65x50	21/2"x2"	88.9	STD	0.68
			X.S	0.91
80x40	3"x11/2"	88.9	STD	0.77
			X.S	1.09
80x50	3"x2"	88.9	STD	0.91
			X.S	1.22
80x65	3"x21/2"	88.9	STD	0.91
			X.S	1.27
100x40	4"x11/2"	101.6	STD	1.36
			X.S	1.91
100x50	4"x2"	101.6	STD	1.40
			X.S	1.95
100x65	4"x21/2"	101.6	STD	1.45
			X.S	2.04
100x80	4"x3"	101.6	STD	1.59
			X.S	2.08
125x80	5"x3"	127.0	STD	2.5
			X.S	3.4
125x100	5"x4"	127.0	STD	2.7
			X.S	3.8
150x50	6"x2"	140.0	STD	3.4
			X.S	4.3
150x65	6"x21/2"	140.0	STD	3.4
			X.S	4.5
150x80	6"x3"	140.0	STD	3.6
			X.S	4.8
150x100	6"x4"	140.0	STD	3.7
			X.S	5.2
150x125	6"x5"	140.0	STD	3.9
			X.S	5.4
200x80	8"x3"	152.4	STD	4.5
			X.S	7.2
200x100	8"x4"	152.4	STD	5.0
			X.S	7.7
200x125	8"x5"	152.4	STD	5.4
			X.S	8.2
200x150	8"x6"	152.4	STD	5.9
			X.S	8.6
250x100	10"x4"	178.0	STD	9.1
			X.S	11.8
250x125	10"x5"	178.0	STD	9.5
			X.S	13.6
250x150	10"x6"	178.0	STD	9.5
			X.S	13.6
250x200	10"x8"	178.0	STD	10.0
			X.S	14.0
300x150	12"x6"	203.0	STD	14.1
			X.S	18.1
300x200	12"x8"	203.0	STD	14.5
			X.S	19.1
300x250	12"x10"	203.0	STD	15.4
			X.S	20.0
350x200	14"x8"	330.0	STD	26.3
			X.S	34.9
350x250	14"x10"	330.0	STD	27.2
			X.S	36.3
350x300	14"x12"	330.0	STD	28.6
			X.S	37.6
400x200	16"x8"	356.0	STD	31.8
			X.S	42.6
400x250	16"x10"	356.0	STD	33.1
			X.S	43.5
400x300	16"x12"	356.0	STD	34.5
			X.S	45.4
400x350	16"x14"	356.0	STD	35.4
			X.S	46.3
450x250	18"x10"	381.0	STD	38.0
			X.S	52.1
450x300	18"x12"	381.0	STD	39.0
			X.S	53.5
450x350	18"x14"	381.0	STD	40.0
			X.S	54.9
450x400	18"x16"	381.0	STD	40.8
			X.S	53.5
500x250	20"x10"	508.0	STD	53.0
			X.S	79.9
500x300	20"x12"	508.0	STD	54.4
			X.S	82.0
500x350	20"x14"	508.0	STD	57.6
			X.S	80.2
500x400	20"x16"	508.0	STD	58.9
			X.S	80.2
500x450	20"x18"	508.0	STD	61.7
			X.S	82.0
600x300	24"x12"	508.0	STD	63.5
			X.S	84.4
600x350	24"x14"	508.0	STD	65.3
			X.S	86.8
600x400	24"x16"	508.0	STD	68.0
			X.S	90.4
600x450	24"x18"	508.0	STD	72.6
			X.S	96.5
600x500	24"x20"	508.0	STD	77.1
			X.S	102.5

Buttweld fittings

Butt Weld Fittings to ANSI.B169 & BS1640

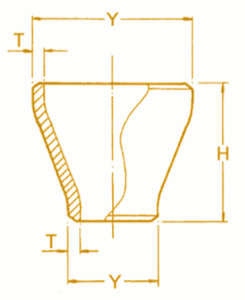

Concentric & Eccentric Reducers
