Anchor bolts

Anchor bolts (Metric Series)

Anchor bolts
Anchor
Thread

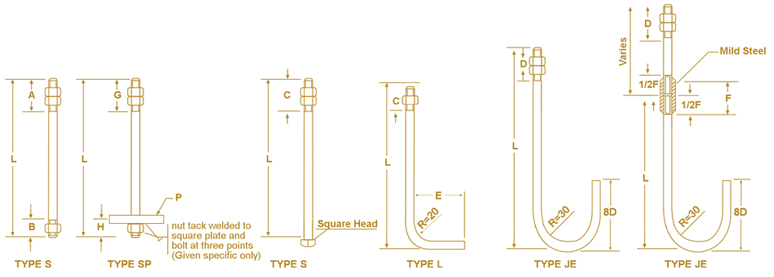

Diameter 		DIMENIONS mm CUTTING LENGTH mm
P Type
A B C D E F G H Square
Plate 		S SP SQ L J JE
T W L L L CUT
Length 		L CUT
Length 		L CUT
Length 		L CUT
Length
12 40 16 40 45 100 - 50 29 10 75 330 330 355 381 355 455 410 530 - -
16 50 19 40 55 100 - 65 35 12 90 400 400 355 388 355 455 420 595 - -
20 60 22 50 70 150 50 75 39 12 90 480 480 405 443 405 485 485 695 355 565
22 70 25 50 75 150 55 80 48 16 100 570 570 460 506 460 545 545 790 415 660
24 85 28 55 90 200 65 90 55 20 100 700 700 510 560 510 610 610 890 475 735
27 - - 75 100 200 75 - - - - - - 560 619 560 675 673 990 535 935
30 100 36 75 115 200 85 110 64 20 125 820 820 610 674 610 735 735 1035 596 945
33 - - 90 125 200 90 - - - - - - - - 660 800 800 1125 655 1040
36 115 42 90 125 200 95 115 76 25 150 1010 1010 - - 710 865 865 1290 715 1130
39 - - 100 145 200 110 - - - - - - - - 760 925 925 1360 770 1225
42 130 49 115 150 255 120 130 85 25 175 1120 1120 - - 815 990 990 1475 830 1315
48 150 56 125 180 255 125 - - - - - - - - 915 1120 1120 1675 956 1510
56 170 63 140 200 255 145 - - - - - - - - 1015 1270 1245 1870 1070 1695
64 190 70 160 220 255 160 - - - - - - - - 1120 1375 1370 2070 1190 1910
